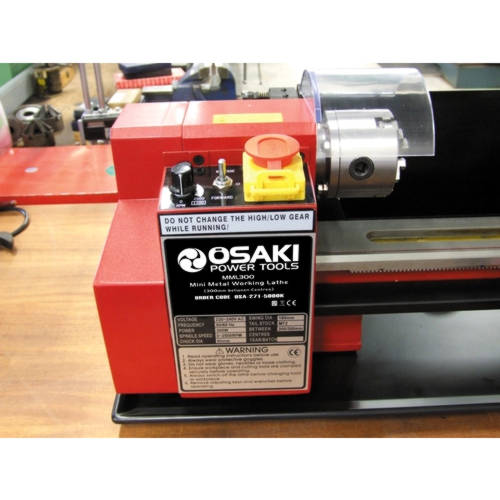

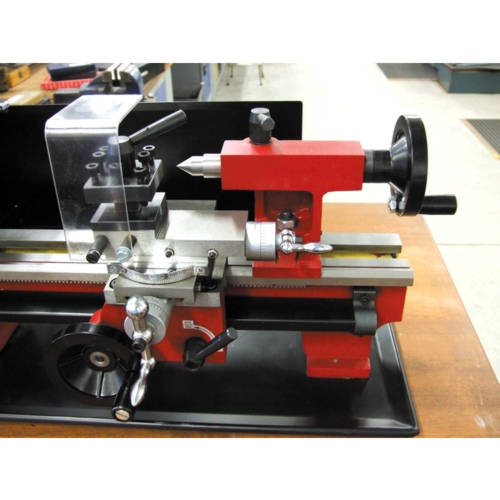

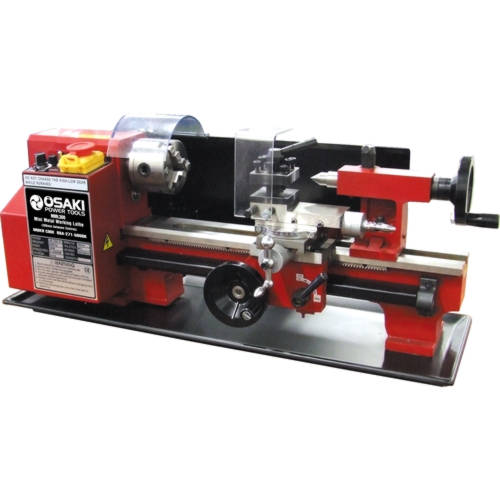

OSAKI OSA271-5000K Mini Metalworking Lathe
MMl300

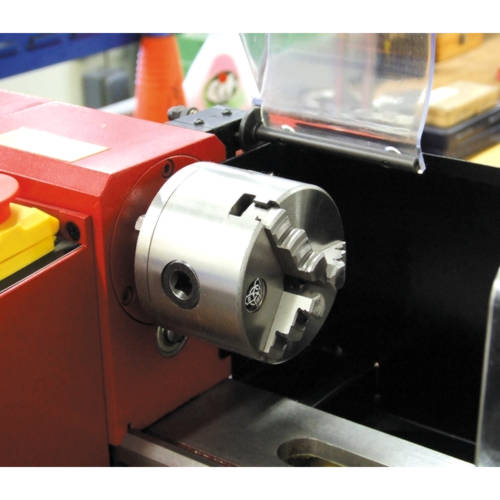

This little gem is ideal for model-making etc. Supplied with a self-centring three jaw chuck, four-way tool post, swarf tray, rear splash guard, emergency stop button and chuck guard. A variety of useful accessories are available (see list). Manufactured to meet European Machinery Directive 98/37/EC and is both CE and RoSH compliant.
Specifications:
Swing over bed: 180mm.
Distance between centres: 300mm.
Hole through spindle: 20mm.
Spindle taper: MT#3.
Tailstock taper: MT#2.
Spindle speed:
Low range: 0 - 1100rpm ¡Ó10%.
High range: 0 - 2500rpm ¡Ó10%.
Output power: 250W.
Range of threads: metric 0.4 -2.00mm
(10 thread pitches) or inch 12 - 52 TP
(8 thread pitches).
Net/gross weight: 37/40kg.
Packing size: 770 x 330 x 330mm.
¡@
- OSA271-5000K
- Shipping Weight: 40kg
- Manufactured by: OSAKI
¡@
