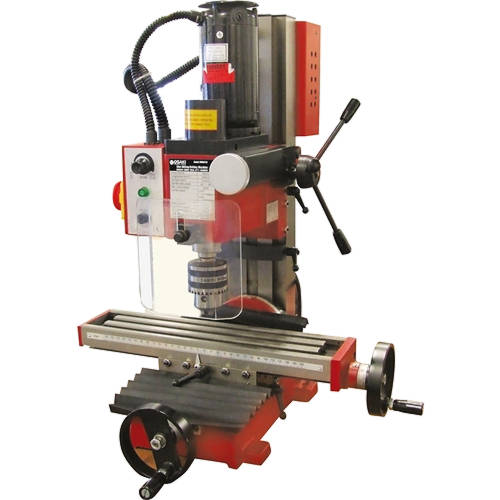

OSAKI OSA271-5500K Mini Milling/Drilling Machine
MMD250
A must for model makers. Bench mounted, this milling/drilling machine has a spindle rotation of up to 45¢X, making it a very capable tool. An assortment of useful accessories are available (see list). This versatile tool has been manufactured to meet European Machinery Directive 98/37/EC and is both CE and RoSH compliant.
Specifications:
Swing over bed: 180mm.
Drilling capacity: 13mm.
End milling capacity: 16mm.
Face milling capacity: 30mm.
Headstock travel (Z): 180mm.
Cross axis: 100mm.
Longitudinal axis: 220mm.
Spindle rotary angle: ¡Ó45.
Output power: 350W.
Spindle speed:
Low range: 0 - 1100rpm ¡Ó10%.
High range: 0 - 2500rpm ¡Ó10%.
Spindle taper: MT#3.
T-slot: 12mm.
Net/gross weight: 50/68kg.
Packing size: 540 x 500 x 760mm.
- OSA271-5500K
- Shipping Weight: 68kg
- Manufactured by: OSAKI
¡@
