KENNEDY KEN885-5100K
　
KWH100B LARGE VIEW WELDING & GRINDING HELMET BLACK:

Be the first of your friends to like this

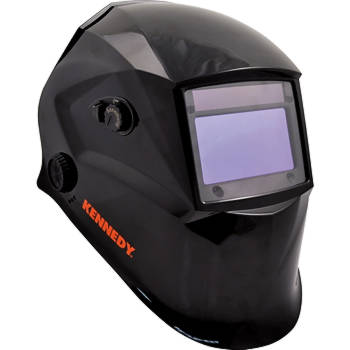

Kennedy KEN885-5100K Large View Automatic Welding & Grinding Helmets

KWH100
Large view (98 x 55mm) impact resistant welding helmets with dedicated grinding mode. Suitable for all kinds of welding types, including TIG low amperage. Made of durable, lightweight corrosion resistant and flame retardant material. The helmets have auto darkening lenses which automatically change from light to dark shade when arc is struck. External sensitivity control provides clear vision both prior to and during welding, whilst ultra high performance filters protect against UV and IR. Special turnover headband mechanism offers greater comfort and reduces fatigue. A CR2450 battery is supplied. Replacement battery can be ordered using order code PAN9042550K.

The product is in full conformity with related DIN EN 379, DIN EN 175 B and ANSI Z87.1 Safety Standards.

Viewing Field: 98 x 55mm (3.86" x 2.17")
UV/IR Protection: Up to Shade DIN16
Light State: DIN4
Variable Shade: From DIN9 to DIN13
Reaction Time: 0.00005 sec (1/20,000 s)
Delay Time: Long - Middle - Short (variable from 0.3s - 0.9s)
Sensors: Four infrared detectors
Power Supply: Solar cells + CR2450 lithium battery
(supplied PAN-904-2550K)
Power On/Off: Fully automatic
Operating Temperature: -5°C to +55°C (23°F to 131°F)
Storing Temperature: -20°C to +70°C (-4°F to 158°F)
Helmet Material: High impact resistant Polyamide (Nylon)

　

Eyeglass-Fit N/A

Headband Material N/A

Helmet Colour Black

Helmet Material Polyamide

Includes N/A

Lens Diameter N/A

Lens Dimensions 123 x 98 mm

Lens Height 98 mm

Lens Material Polycarbonate

Lens Width 123 mm

Maximum Operating Temperature 55 °C

Minimum Operating Temperature -5 °C

Operating Temperature Range -5 to 55 °C

Overall Weight 0.47

Power Type Battery; Solar Cell

Shade Number 4;9;10;11;12;13

Shield Shell Type N/A

Standards Met EN175 B; EN379

Supplier Part No. SUN7 BLACK

Switching Time (Dark-Light) 0.3 to 0.9ms

Switching Time (Light-Dark) 0.5ms

Type Helmet

UNSPSC Code 46181804

Viewing Area 98 x 55mm mm

Viewing Field Height 55 mm

Viewing Field Width 98 mm

Visor Type N/A

Weight 470 g

Model: KEN885-5100K
Manufactured by: KENNEDY INDUSTRIAL
