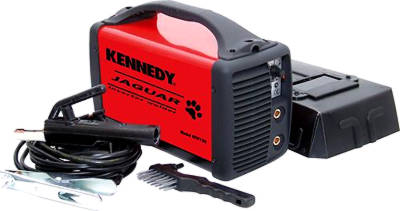

Now you can have all the portability and performance of an inverter welder with a wide input voltage range of 100-240v. With the Jaguar PFC multi-voltage inverter welder you can carry out MMA welding with rutile, basic, stainless steel and cast iron electrodes, as well as TIG welding with scratch striking.
The fan cooled unit can handle unstable voltages and offers stable output in the case of over/under voltages. It also allows for the use of long extensions (over 100m) and has Hot Start for easy starting, Arc Force for quality welds and Anti-Stick for reduced electrode sticking. Comes with carry case and accessories.
Power Supply: 110/230V (DC) 50/60Hz single phase
Current Fuse Rating: 150A
Duty Cycle @40 degrees C: 90A@25%, 140A@25%
Protection class: IP22
Dimensions: 385 x 150 x 265mm (LxWxH)¡@ |
|
Property |
Value |
|
Model : |
Jaguar PFC Multi Voltage Inverter |
|
Frequency : |
50/60Hz |
|
MFR Part No.
: |
852047 |
|
Output Current Range : |
10 to 140A |
|
Duty Cycle : |
115v-55A@100%
115v-60A@60%
115v-90A@25%
230v-140@25%
230v-80A@100%
230v-95A@60%
|
|
Input Voltage : |
100 to 240V |
|
Fuse Rating : |
16A |
|
Phase : |
1 |
|
Electrode Size : |
1.6 - 3.2mm |
|
Standards Met
: |
CE Marking |
|
Maximum Open Circuit Voltage
: |
75V |
|
Weight
: |
3.7kg |
|
Dimensions (L x W x H) : |
385x150x265mm |
|
Includes : |
1.8m Earth Cable with 250A Clamp
1.8m Primary Cable 16mm²
2m Mains Cable
Hand Held Face Shield with 51 x 107 Glass lens
Instruction Manual
Scratch Brush with Slag Remover
|
¡@
¡@
